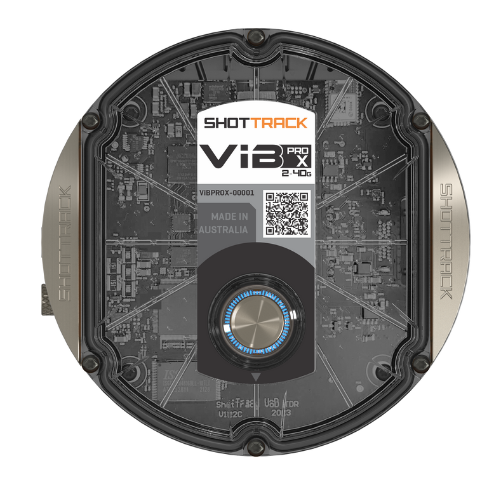

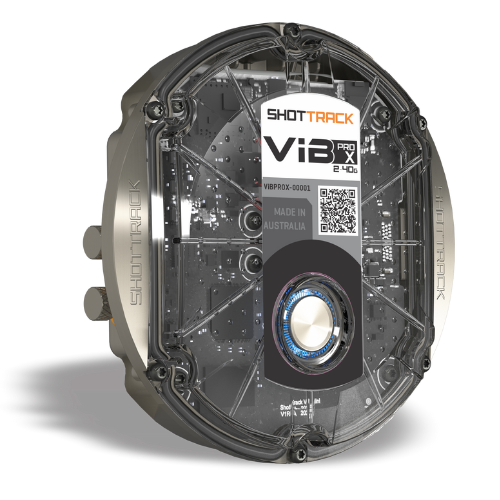

ShotTrack ViB-Pro

The ShotTrack ViB-Pro is the flagship vibration monitor from ShotTrack. It is a compact and versatile vibration monitoring unit designed to provide cost-effective solutions for a range of applications, including ground vibration monitoring, bridge stability, and construction-induced vibration. Equipped with a high-precision tri-axial accelerometer with selectable sensitivity ranges of 2g, 4g, or 8g, the device can be controlled through a dedicated mobile application via Bluetooth connectivity. This enables immediate result display and seamless data upload to the cloud-based SHOCK AI platform for comprehensive analysis and automated report generation.

Powered by a rechargeable 4.7Ah Lion battery with UCB-C fast charging, the onboard GPS provides accurate location and timing information, and the PPS embedded in the data provides for precise propagation timing and other testing requirements. It also features a wire-break option for underground timing requirements. Our ViB-Pro can be deployed at any angle, with the M10 thread, Dynabolt (Masonry Bolt), base plate, or screw-in spikes for soft ground applications.

The unit comes with free access to SHOCK AI cloud upload and software for analysis and reporting. Easy-to-use, portable, and cost-effective, the ViB-Pro is your all-in-one solution for monitoring vibrations in a variety of applications.

Expert Product Advice

This is my preferred blast vibration monitoring unit for underground blast troubleshooting and compliance monitoring. These accelerometer-based units offer excellent battery life, are highly portable, and can be installed in any orientation. They can be positioned close to the blast to accurately capture high-energy vibration events. The data is clean and easily accessible via your phone using Bluetooth.

Use Cases

Slot raise and burn cut charge success/failure analysis, slot raise timing optimisation, near-field vibration monitoring, compliance monitoring



Additional information

Record Time

up to 26 seconds at 1000 S/s
up to 13 seconds at 2000 S/s
2g, 4g, 8g or 10g, 20g, 40g amplitude
20 Bit resolution
